triangular/right angle/corner cube prism

FOB Reference Price:Get Latest Price
$1.00 - $10.00 / Piece | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jilin, China
Brand Name:
Effort
Model Number:
right angle
Material:
BK7/ Ge / UV Fused quartz
Surface Quality:
40/20, 60/40,80/50
Dimension Tolerance:
±0.2 mm, +/-0.01~+/-0.1mm
Angle Tolerance:
±3 arcmin, 3'~2''
Flatness:
lambda / 4
Coating:
as requirement
Surface Flatness:
lambda / 4
Clear Aperture:
90% of Face Length and Width
Size:
customized
Type:
right angle prism
color:
colorless
Use:
optical
Supply Ability
Supply Ability:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 piece into wrapping foam bag. 20 pcs into one box. More than 100pcs in carton.According to the requirements(depands on the production size)
Port
Dalian,Shanghai,Shenzhen,qindao,

About Effort:

Welcome to Changchun Effort Technology CO., LTD, which is based in Chang Chun City, the famous optical base city of China. Since its inception, Effort has been involved in the design, research and development of precision optical components, thin film coating and in related instrumentation activities. Close cooperated with universities, institutes, some industrial firms and national aero-space project. We will be happy to quote for all custom optics.

We are the direct manufacturer., and we have trade department, in order to provide complete pre-sales and post-sales support.



Trade department:                                                Factory:







Product Description
  • different shape for your demands

Parameters:

Material:BK7,fused silica,sapphire,znse.

Clear Aperture:>98%

Focal Length:2mm-10000mm+/-0.3%

Size:0.5-460mm+/-0.02mm

Center thickness:0.8-200mm+/-0.01mm

Centration:30''

Irregularity:lambda/8

Surface Quality:40/20

Radius tolerance+/-0.3%

Reflective coating:AL,Sliver,Golded,etc. Customize AR Aoating  Available


Overview

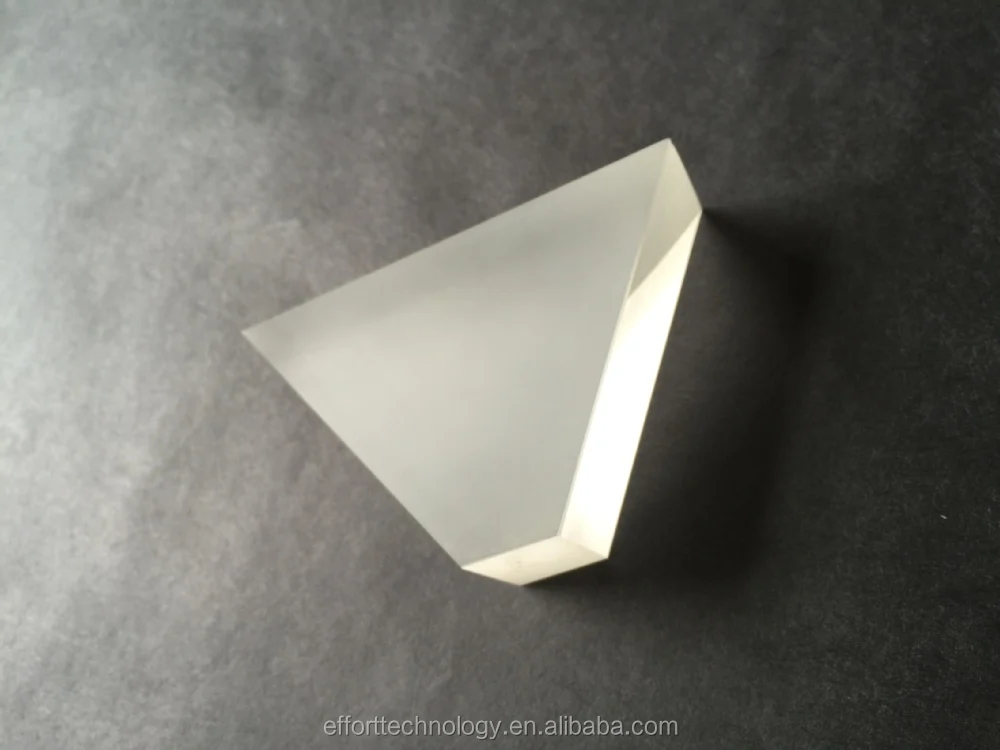

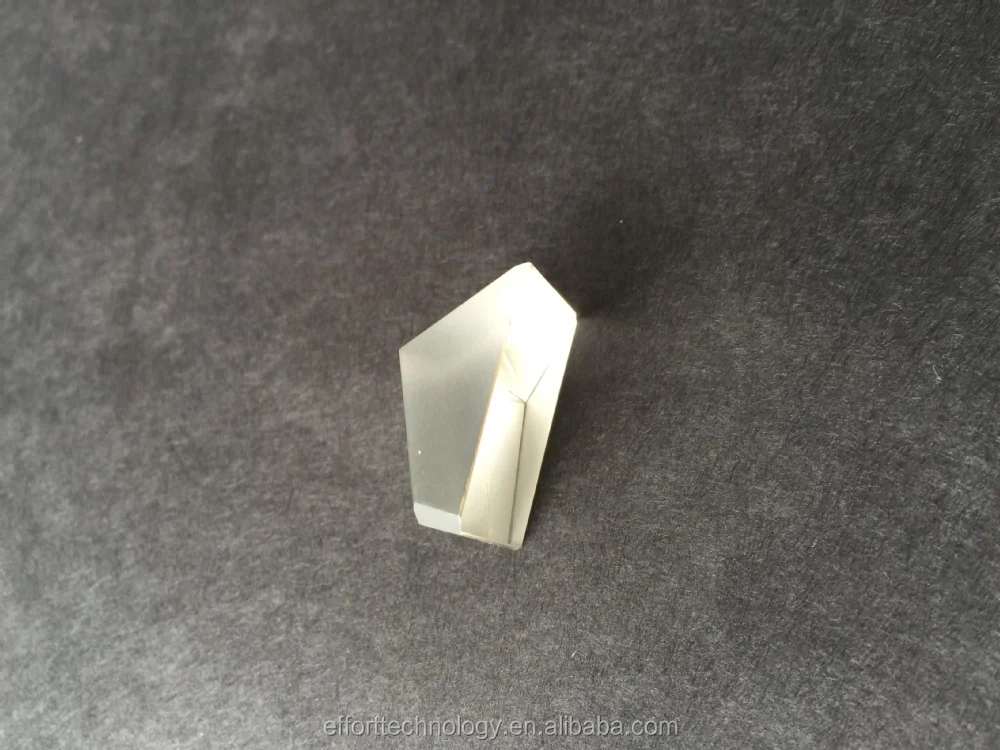

Right Angle Prism

Right-angle prism can be used as a substitute for the mirror. with very high accuracy and precision angle of the prism surface, it can also be used directly bonded to machined parts.

  • Customized Dimension available
  • Fabricated from N-BK7, UV Fused Silica, CaF2, ZnSe, or Ge
  • Available with Customized AR Coating

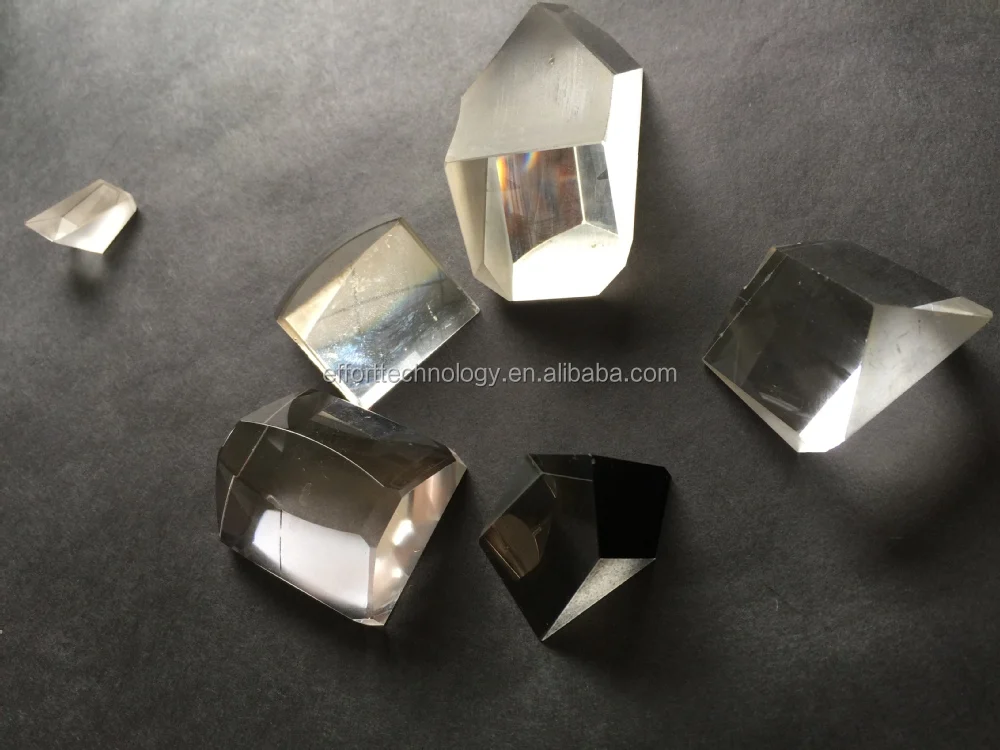

Prism Selection Guide
ProductApplicationIllustrationComparison
Right Angle  Prism


A right-angle prism deviates the beam by 90°

 Adaptable physical dimension for compacting optical system(with mirror)
Dispersion  Compensation Prism The dispersing prism separates wavelengths.  Higher order dispersion compression(with grating)
Wedge Prism Wedge prisms are used in beam-steering applications.

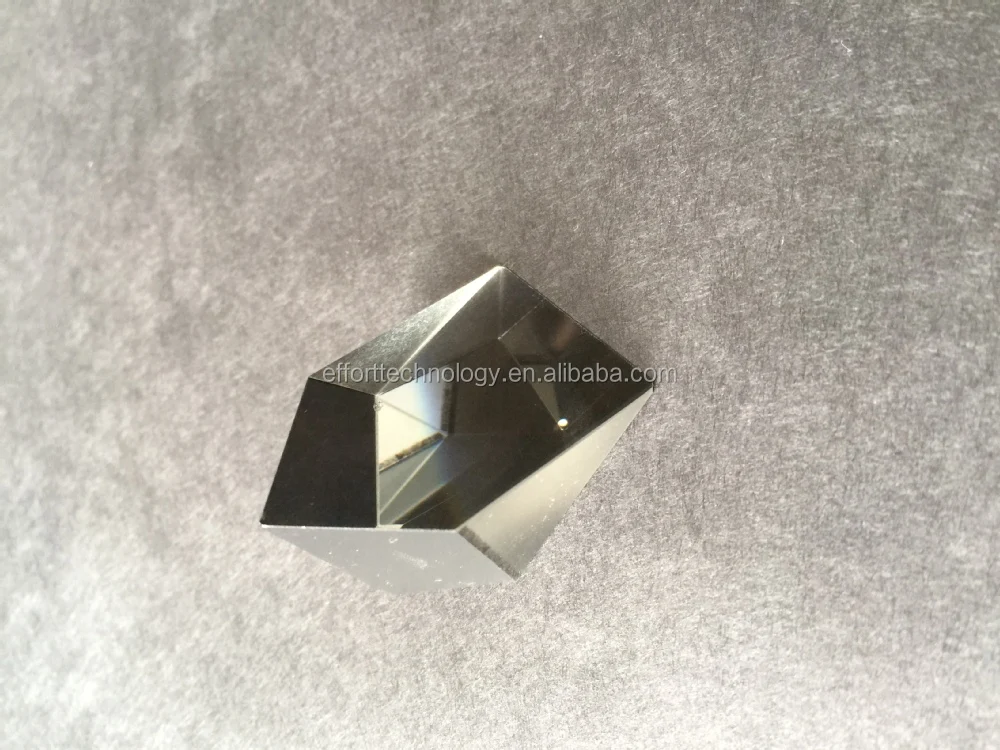

Penta Prism Penta prisms deviate a beam by 90° but do not reverse the image.
Dove Prism The dove prism is used as an image rotator. As the prism is rotated, the image rotates at twice the angular rate of the prism.






More prism production






Guarantee

     The company's design and excellent front-lineproduction team have more than 15 years experiencesin distributing high quality optical lens and optics.We provide the highest grade products as well asworld class technical support. There are some classicprocessing equipments & testing instruments toassure the quality. All products are processed withstrictly inspection control guidelines in order to guarantee the quality.



Packaging

We pay attention to every details of the package , cleaning, anti-static , shock treatment . According to the quantity and shape of the product , we will take a safety packaging process !





Delivery:

To have safey and fast logistic accurate delivery to your hands, we generally recommend that you choose the international logistics company!



 About inquary

We would very appreciate if you let us know the following information to estimate the   quotation for you when you inquiry:

* Purpose of use

* Material

* Drawing

* Quantity (per order & per year)

Structure (Diameter,center thickness,Relative tolerance etc.)

* Surface Quality (Scratch & Digs etc.)

* Coating Specification etc.

* Focal Length

* Other Related Specification
